LULA

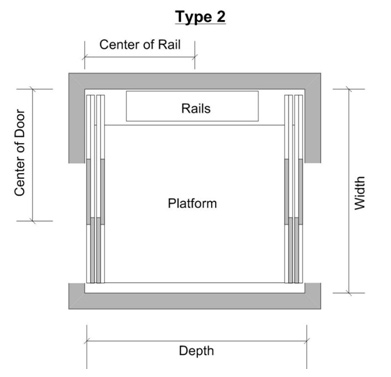

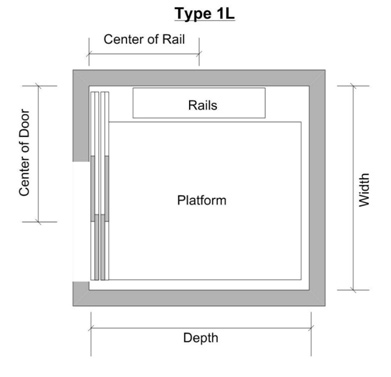

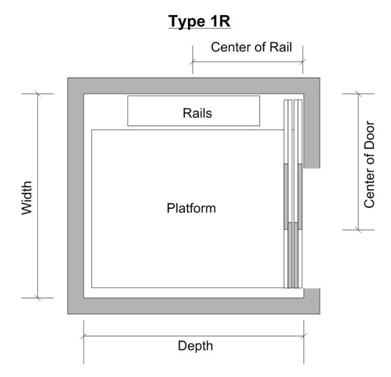

DRAWINGS
| Capacity | Width | Depth | Center Rail | Center Door | OH Remodel | OH New Build | |||
|---|---|---|---|---|---|---|---|---|---|
| 42×60 | 1000 | 69” | 79” | 43” | 41” | 108” | 134” | DWG | |
| 48×54 | 1000 | 69” | 73” | 40” | 41” | 108” | 134” | DWG |
* All dimensions are finished dimensions after sheet rock
* OH is the abbreviation for overhead distance. This is the measurement from the floor level of the top landing to the ceiling of the hoistway.
| Capacity | Width | Depth | Center Rail | Center Door | OH Remodel | OH New Build | |||
|---|---|---|---|---|---|---|---|---|---|
| 42×60 | 1000 | 69” | 79” | 43” | 41” | 108” | 134” | DWG | |
| 48×54 | 1000 | 69” | 73” | 40” | 41” | 108” | 134” | DWG |
* All dimensions are finished dimensions after sheet rock
* OH is the abbreviation for overhead distance. This is the measurement from the floor level of the top landing to the ceiling of the hoistway.
| Capacity | Width | Depth | Center Rail | Center Door | OH Remodel | OH New Build | |||
|---|---|---|---|---|---|---|---|---|---|
| 42×60 | 1000 | 69” | 86” | 43” | 41” | 108” | 134” | DWG | |
| 48×54 | 1000 | 69” | 80” | 40” | 41” | 108” | 134” | DWG |
* All dimensions are finished dimensions after sheet rock
* OH is the abbreviation for overhead distance. This is the measurement from the floor level of the top landing to the ceiling of the hoistway.
