Freedom Green WD

SPECS

DRAWINGS

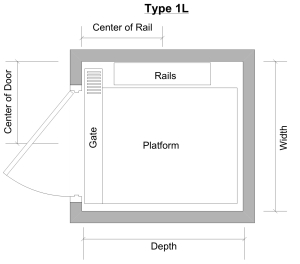

	Capacity	Width	Depth	Center Rail	Center Door	OH 80″Cab	OH 84″Cab	OH 96″Cab
Winding Drum Above
36×48	1000	50”	55”	29”	28”	96”	100”	112”	PDF	DWG
36×54	1000	50”	61”	32”	28”	96”	100”	112”	PDF	DWG
36×60	1000	50”	67”	35”	28”	96”	100”	112”	PDF	DWG
40×54	1000	54”	61”	32”	32”	96”	100”	112”	PDF	DWG
Winding Drum Below
36×48	1000	50”	55”	29”	28”	96”	100”	112”	PDF	DWG
36×54	1000	50”	61”	32”	28”	96”	100”	112”	PDF	DWG
36×60	1000	50”	67”	35”	28”	96”	100”	112”	PDF	DWG
40×54	1000	54”	61”	32”	32”	96”	100”	112”	PDF	DWG

* All dimensions are finished dimensions after sheet rock

* OH is the abbreviation for overhead distance. This is the measurement from the floor level of the top landing to the ceiling of the hoistway.

	Capacity	Width	Depth	Center Rail	Center Door	OH 80″Cab	OH 84″Cab	OH 96″Cab
Winding Drum Above
36×48	1000	50”	55”	29”	28”	96”	100”	112”	PDF	DWG
36×54	1000	50”	61”	32”	28”	96”	100”	112”	PDF	DWG
36×60	1000	50”	67”	35”	28”	96”	100”	112”	PDF	DWG
40×54	1000	54”	61”	32”	32”	96”	100”	112”	PDF	DWG
Winding Drum Below
36×48	1000	50”	55”	29”	28”	96”	100”	112”	PDF	DWG
36×54	1000	50”	61”	32”	28”	96”	100”	112”	PDF	DWG
36×60	1000	50”	67”	35”	28”	96”	100”	112”	PDF	DWG
40×54	1000	54”	61”	32”	32”	96”	100”	112”	PDF	DWG

* All dimensions are finished dimensions after sheet rock

* OH is the abbreviation for overhead distance. This is the measurement from the floor level of the top landing to the ceiling of the hoistway.

	Capacity	Width	Depth	Center Rail	Center Door	OH 80″Cab	OH 84″Cab	OH 96″Cab
Winding Drum Above
36×48	1000	50”	56”	28”	28”	96”	100”	112”	PDF	DWG
36×54	1000	50”	62”	31”	28”	96”	100”	112”	PDF	DWG
36×60	1000	50”	68”	34”	28”	96”	100”	112”	PDF	DWG
40×54	1000	54”	62”	31”	32”	96”	100”	112”	PDF	DWG

* All dimensions are finished dimensions after sheet rock

* OH is the abbreviation for overhead distance. This is the measurement from the floor level of the top landing to the ceiling of the hoistway.

	Capacity	Width	Depth	Center Rail	Center Door1	Center Door2	OH 80″Cab	OH 84″Cab	OH 96″Cab
Winding Drum Above
36×48	1000	52”	55”	29”	28”	34”	96”	100”	112”	PDF	DWG
36×54	1000	52”	61”	32”	28”	40”	96”	100”	112”	PDF	DWG
36×60	1000	52”	67”	35”	28”	46”	96”	100”	112”	PDF	DWG
40×54	1000	56”	61”	32”	32”	40”	96”	100”	112”	PDF	DWG

* All dimensions are finished dimensions after sheet rock

* OH is the abbreviation for overhead distance. This is the measurement from the floor level of the top landing to the ceiling of the hoistway.

	Capacity	Width	Depth	Center Rail	Center Door1	Center Door2	OH 80″Cab	OH 84″Cab	OH 96″Cab
Winding Drum Above
36×48	1000	52”	55”	29”	28”	34”	96”	100”	112”	PDF	DWG
36×54	1000	52”	61”	32”	28”	40”	96”	100”	112”	PDF	DWG
36×60	1000	52”	67”	35”	28”	46”	96”	100”	112”	PDF	DWG
40×54	1000	56”	61”	32”	32”	40”	96”	100”	112”	PDF	DWG

* All dimensions are finished dimensions after sheet rock

* OH is the abbreviation for overhead distance. This is the measurement from the floor level of the top landing to the ceiling of the hoistway.

	Capacity	Width	Depth	Center Rail	Center Door	OH 80″Cab	OH 84″Cab	OH 96″Cab	OH Pitless
Winding Drum Above
36×48	1000	52”	56”	28”	35”	96”	100”	112”	N/A	PDF	DWG
36×54	1000	52”	62”	31”	41”	96”	100”	112”	N/A	PDF	DWG
36×60	1000	52”	68”	34”	47”	96”	100”	112”	N/A	PDF	DWG
40×54	1000	56”	62”	31”	41”	96”	100”	112”	N/A	PDF	DWG

* All dimensions are finished dimensions after sheet rock

* OH is the abbreviation for overhead distance. This is the measurement from the floor level of the top landing to the ceiling of the hoistway.
