Freedom Elite

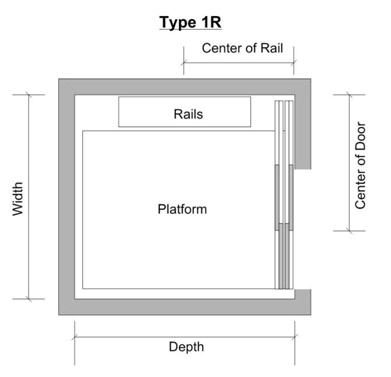

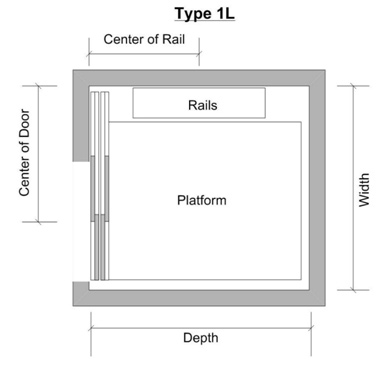

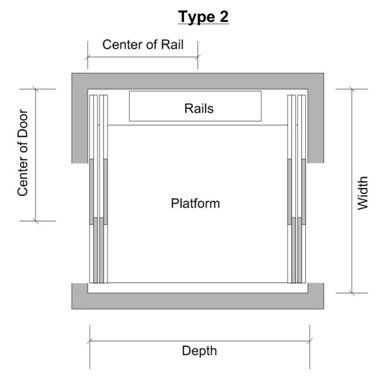

DRAWINGS
| Capacity | Width | Depth | Center Rail | Center Door | OH 80″Cab | OH 84″Cab | OH 96″Cab | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Hydraulic | ||||||||||
| 40×54 | 1000 | 62” | 65” | 32” | 40” | 96” | 104” | 116” | DWG | |
| Winding Drum Above | ||||||||||
| 40×54 | 1000 | 62” | 65” | 32” | 40” | 96” | 104” | 116” | DWG | |
| Winding Drum Below | ||||||||||
| 40×54 | 1000 | 62” | 65” | 32” | 40” | 96” | 104” | 116” | DWG | |
* All dimensions are finished dimensions after sheet rock
* OH is the abbreviation for overhead distance. This is the measurement from the floor level of the top landing to the ceiling of the hoistway.
| Capacity | Width | Depth | Center Rail | Center Door | OH 80″Cab | OH 84″Cab | OH 96″Cab | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Hydraulic | ||||||||||
| 40×54 | 1000 | 62” | 65” | 32” | 40” | 96” | 104” | 116” | DWG | |
| Winding Drum Above | ||||||||||
| 40×54 | 1000 | 62” | 65” | 32” | 40” | 96” | 104” | 116” | DWG | |
| Winding Drum Below | ||||||||||
| 40×54 | 1000 | 62” | 65” | 32” | 40” | 96” | 104” | 116” | DWG | |
* All dimensions are finished dimensions after sheet rock
* OH is the abbreviation for overhead distance. This is the measurement from the floor level of the top landing to the ceiling of the hoistway.
| Capacity | Width | Depth | Center Rail | Center Door | OH 80″Cab | OH 84″Cab | OH 96″Cab | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Hydraulic | ||||||||||
| 40×54 | 1000 | 62” | 65” | 32” | 40” | 96” | 104” | 116” | DWG | |
| Winding Drum Above | ||||||||||
| 40×54 | 1000 | 62” | 65” | 32” | 40” | 96” | 104” | 116” | DWG | |
| Winding Drum Below | ||||||||||
| 40×54 | 1000 | 62” | 65” | 32” | 40” | 96” | 104” | 116” | DWG | |
* All dimensions are finished dimensions after sheet rock
* OH is the abbreviation for overhead distance. This is the measurement from the floor level of the top landing to the ceiling of the hoistway.
